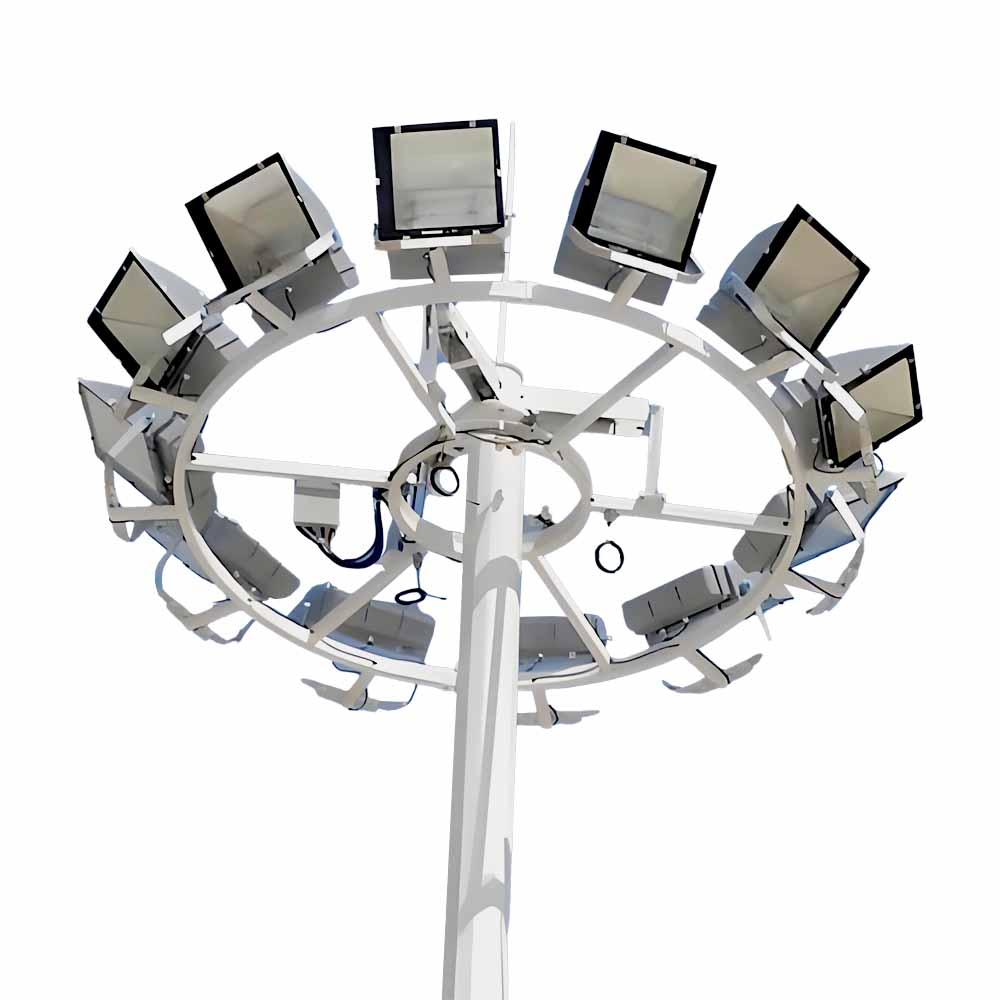

High mast lighting is a widely used and highly effective solution for large-area illumination, commonly applied in ports, airports, highways, city squares, interchanges, and large stadiums. The poles are made of high-quality steel, with lamp panels available in frame, enclosed, spherical, flying-saucer, and decorative styles, typically over 25 meters in height. With concentrated light distribution, wide coverage, and excellent uniformity, it provides daylight-like visibility and reliable functional lighting.
| Rod height | 30 meters |
| Rod material | Q3458 steel |
| Rod diameter | Bottom diameter 400mm, top diameter 250mm (customizable according to customer needs) |
| Wall thickness of pole body | 8-12mm (customized according to height and wind resistance level) |
| light source | LED |
| Light source power | 1000W-4000W (customizable) |
| luminous flux | 120-150lm/w |
| Color temperature | 3000K-6500K (Warm White, Neutral White, Cold White optional) |
| Rendering Index | Ra≥80 |
| protection grade | IP66 |
| working voltage | AC220V/50Hz or AC380V/50Hz |
| Power factor | ≥0.95 |
| control mode | Remote monitoring, timed switch, light sensing control, manual control |
| Wind loading | Level 12 |
| operation temperature | -40°C-+60°C |
| service life | Light source ≥ 50000 hours, pole body ≥ 20 years |
Powerful Lighting Performance
Equipped with high-output LED light sources, the system delivers excellent efficiency and uniform brightness, covering wide areas from a mounting height of 30 meters. It effectively illuminates spaces within a 50–80 meter radius, meeting demanding lighting requirements for various applications. The advanced optical design minimizes glare and light spill, directing illumination precisely where it is needed and enhancing overall efficiency.
Robust and Long-lasting Structure
The pole is manufactured from premium Q345B steel and treated with dual-layer protection—hot-dip galvanizing and powder coating—to resist corrosion. It withstands extreme weather conditions such as typhoons up to level 12, heavy rain, freezing cold, and high heat, ensuring a lifespan of over 20 years. The segmented structure makes transport and installation easier without compromising stability. The lamp panel, built from aluminum alloy, combines light weight, strength, and superior resistance to corrosion while offering efficient heat dissipation.
Smart Energy-saving Control
Multiple intelligent control options are supported, including remote monitoring, scheduled switching, and light-sensing automation. These allow brightness and operating times to be adjusted according to real needs, significantly reducing energy use. With high-efficiency power drivers (power factor >0.95), the system minimizes energy waste. Compared to traditional high-mast lighting, energy savings exceed 60%, cutting operational costs for users.
Easy Maintenance Design
The adjustable lamp panel can be raised and lowered either electrically or manually, simplifying installation, servicing, and lamp replacement without the need for aerial work platforms. This reduces both maintenance costs and safety risks. The modular fixture design further streamlines component replacement, ensuring fast and convenient upkeep.
